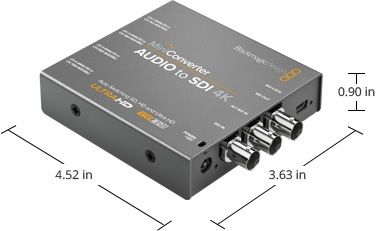

Blackmagic Design Mini Converter - Audio to SDI 4K - BMD-CONVMCAUDS4K

Please click on the SPECIFICATIONS tab above or call our sales team at 1-888-686-0551 for more detailed information on this product.

Mini Converter Audio to SDI 4K includes everything you need to embed 4 channels of analog audio or 8 channels of AES/EBU digital audio into any SDI video connection. Now you can embed professional audio from devices such as audio mixers and analog decks into SDI video connections for use with SDI routers and decks or to add extra audio channels to video converters!

Connections

Switchable between SD, HD, 3G and 6G-SDI.

Automatically matches the SD, HD, 3G and 6G-SDI video input.

Automatically switches over if main SDI input is lost.

4 channels of professional balanced analog audio with standard 1/4 inch jack connections.

8 channels of professional balanced digital with standard 1/4 inch jack connections.

Auto detection of 4K, UHD, 2K, HD or SD-SDI inputs.

USB

Yes

Standards

SMPTE 292M, SMPTE 259M,
SMPTE 296M, SMPTE 372M,
SMPTE 424M-B, SMPTE 425M,
ITU-R BT.656, ITU-R BT.601,
SMPTE ST-2036

SDI video connections are switchable between standard definition and high definition.

4:2:2, 4:4:4

Television standard sample rate of 48 kHz and 24 bit.

4:2:2, 4:4:4

YUV, RGB

Automatically selects between SD, HD, 3G and 6G-SDI.

525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30 and 1080PsF30, 1080p50, 1080p59.94, 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24,2048 x 1080PsF25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30.

Software

Mac OS X™ and Windows™ software upgrade via USB.

Via included updater application.

Operating Systems

• Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.
• Windows 7 or Windows 8.

Settings Control

Mini Switches or USB software.

Power Requirements

+12V universal power supply included with international socket adapters for all countries. Cable tie point.

8.40 Watts

12V - 31V DC

• Mini Converter Audio to SDI 4K
• 12V universal power supply with international socket adapters

Warranty

3 Year Limited Manufacturer's Warranty.
