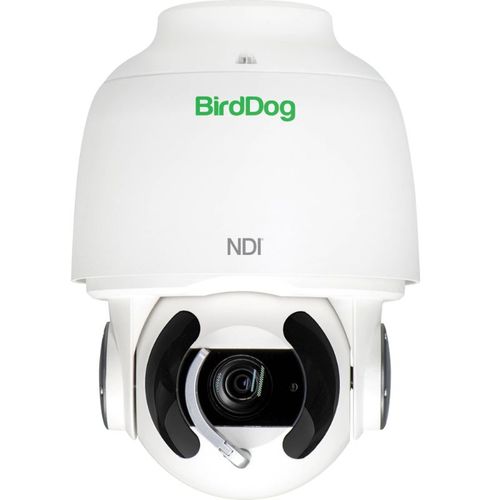

BirdDog Weatherproof NDI PTZ Camera - A200

BirdDog Weatherproof NDI PTZ Camera - A200

Part Number: A200
Our Price: $5,295.00
This Item Is Discontinued
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

Weatherproof Full NDI® PTZ.

Designed for fixed outdoor installations such as sports, the IP67 rating means A200 can withstand pretty much any weather conditions. By teaming up BirdDog’s custom NDI® silicon chip, a Sony CMOS backlit sensor, and a true Sony Image module A200 has lightning auto focus, incredibly sharp images, and insanely fast zoom. A200 has frame rates up to 1080p60, 30x optical zoom, and outputs SDI and Full NDI® simultaneously.

Full NDI®. No compromises.

In the world of NDI there are two flavours, NDI® and NDI|HX. NDI® is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. Eyes A200 hardware only Encodes and Decodes Full YUV422 NDI®.

Sony Sensor. You deserve the best.

The best pictures come from the best silicon. A200 is teams up a world class Sony CMOS Backlit Sensor with the BirdDog custom NDI® chip to form a match made in silicon heaven. Your productions deserve the best.

Sony Image Module. Optics done right.

Lightning auto focus. Insanely fast zoom. Precision optics. The only way to achieve the best picture quality is with image module made by the world’s best. A200 uses a true Sony image module to give unparalleled performance, picture quality, and responsiveness.

All weather. Keep your NDI® dry.

With an IP67 rating A200 is perfect for fixed installations in outdoor and indoor environments. The external housing has been treated for corrosion resistance against salt spray and the -40°C to +60°C operating temperature rating means it has been designed to withstand the most extreme elements on earth. It even has a rain wiper to keep water off the lens.

Dual Output. NDI® and SDI.

With NDI® and SDI simultaneous outputs, the A200 is ready to go live with your full NDI® workflow, or if you are still in an old school SDI workflow you can control via RS422, RS485, and RS232 to future proof your investment by using baseband video now and move to NDI® when you are ready.

30x Optical zoom. Over there is now over here.

The two punch 30x optical zoom and all weather abilities of makes A200 perfect for outdoor and indoor fixed installations for sports such as football, baseball, hockey, ski fields, basketball, soccer, and more.

You spin me right round baby. Right round.

360 degree continuous rotation, 255 preset positions, Zero Deviation Positioning technology, and a preset movement speed of 150 degrees per second mean you will never miss a shot again.

PTZ Keyboard. Take control.

Combine A200 with the BirdDog PTZ Keyboard and you have total control of all functions remotely. PTZ Keyboard is a full featured PTZ Keyboard that can control up to 255 PTZ cameras on a single network so can scale to even the most complex installations. PTZ Keyboard can control A200 over NDI® or by RS422 / RS232 when using in SDI mode.

PoE and Mounts. All options available.

A200 can be powered by PoE with an optional PoE Injector. Designed to hang upside down the choice of mounting options gives coverage for virtually any situation. Wall mount, Ceiling Mount, Corner Mount and Pole Mounting options all available.

Adaptive bit rate. Slide your way to glory.

Full NDI® is a variable bit rate codec. In normal circumstances BirdDog recommends allowing around 140Mbps in HD, or 6 streams per 1GbE cable with some headroom. In 4K it is recommended to allow around 300Mbps or 3 streams with some headroom to allow for any unforeseen spikes. With BirdDog’s tools you can select the bit rate to suit your bandwidth and requirements. In both HD you can slide between 80-180Mbps and in 4K you can select the data rate to be anywhere between 60 and 360Mbps.

RESTful API. DIY automation.

Download the free BirdDog RESTful API and program your own automation for all BirdDog hardware endpoints, including cameras.

BirdDog Together.

BirdDog are pleased to offer free Central Pro and Comms Pro worth $1490 to all our Educational, House of Worship, and Not for Profit customers.

Free Software Tools.
  • Central Lite. - Team up Central Lite with any NDI® source, including all BirdDog hardware capable of creating NDI® sources, you can now drive your NDI® streams to any BirdDog Studio NDI or Mini to decode NDI® back to SDI or HDMI.
  • Cam Control. - Cam Control allows easy access to all settings of all the BirdDog cameras on your network. Get the look you want on the full screen output monitor and then copy across multiple cameras to colour match in seconds.
  • Comms Lite. - Comms Lite is your free Audio Intercom solution. With support for four BirdDog devices, plus a director, Comms Lite is a great way to start using Audio Intercom in your live productions.

Specifications

CAMERA
IMAGE SENSOR1 / 2.8 inch CMOS 2.13MP
LENS4.3-129mm
OPTICAL ZOOM30x
DIGITAL ZOOM12x
HORIZONTAL ANGLE OF VIEW63.7° (W) – 2.3° (T)
APERTUREF1.6 (W) – F4.7 (T)
MIN. ILLUMINATIONColor: 0.01 lux (F1.6, AGC on ,1/30s, High sensitive mode), 0.1 lux (F1.6, AGC on, 1/30s, Normal sensitive mode)
SHUTTER SPEED1/1 – 1/10000s
FOCUSAuto, Push, Manual
WHITE BALANCEAuto, Indoor, Outdoor, Manual, OPW, ATW
EXPOSUREAuto, Manual, Shutter/Iris Priority
BACKLIGHT COMPENSATIONYES
MECHANICAL
PAN MOVEMENTHorizontal: ±360° continuous pan (Zoom Adaptive Speed Range: 0.01°?150°/S )
TILT MOVEMENTVertical: -90° to +15° (Zoom Adaptive Speed Range: 0.05°?90°/S)
PRESET POSITIONS255 (Speed adjustable: Up to 150°/s)
ENVIRONMENTALOutdoor/Indoor, IP67, corrosion resistant treated housing
OPERATING TEMPERATURE-40 – +60 (°C)
OPERATING HUMIDITY?80%
INFRAREDAdaptive infrared, illumination up to 100m
VIDEO INTERFACE
VIDEO INTERFACENDI/SDI
VIDEO FORMATS1080p 60, 59.94, 50, 29.97, 25
1080i 60, 59.94, 50
720p 60, 59.94, 50, 29.97, 25
AUDIO I/O3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)
CONTROL INTERFACE
IP PTZ CONTROLNDI Control (auto configuring)
SERIAL PTZ CONTROLRS422/RS485 Connector
SERIAL CONTROL PROTOCOLVISCA / Pelco D
POWER & DIMENSIONS
POWER INPUTAC 24v, PoE 97W Ready (BirdDog PoE 97W Injector needed, optional)
POWER CONSUMPTIONMin: 22W; Max: 68W?Fully loaded operation with heater and IR on?
DIMENSIONS210x210x333mm
WEIGHT5.5Kg
NETWORK
VIDEO COMPRESSIONFull NDI – i-frame high quality low latency NDI for production
NETWORK PROTOCOLNDI – Discovery, configuration and control
WEB CONTROL INTERFACEFull control via Web/Mobile UI including Scene presets
