Aurora 6 Button Dynamic Control Interface (OLED) - WPAD-6C

Aurora 6 Button Dynamic Control Interface (OLED) - WPAD-6C

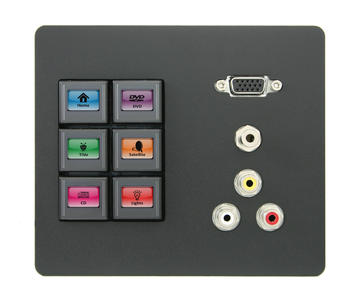

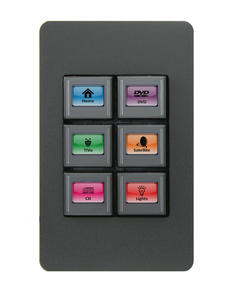

The WP-6C is an innovative six button wall interface which combines the functionality of buttons with OLED displays to create a unique and exiting user experience. The WP-6C has the ability to serve up web pages to browser capable devices and has one serial port, and one IR/Serial port.

Benefits:

• WACI PAD offers users the reassuring sensation of a tactile button press.


• Dynamic actions take place instantly as a button is pressed


• Almost all practical system designs can be accommodated by this innovative device.


• Overall, WACI PAD offers a superior user experience at a very affordable price.


• WACI-PAD is an interface and control system all in one!

General Specifications
Processor
250 MIPS processor

OLED
64x48 pixels per button

Memory
4MB Flash, 4MB RAM

Ports
Serial
(1) RS-232/422/485

IR
(1) IR/1-way RS-232

LAN
(1) 10/100 LAN Port with auto MDX(POE capable on port 1)

OLED Color
65K Colors

Software
Internal Web Server
Built-in diagnostics and setup
Internal bitmap setup

Physical
Power Supply
12V

Size
1 Gang

Weight
1lbs [454g]
