Aurora 12 Button Dynamic Control Interface (LCD) - WPAD-12L

Aurora 12 Button Dynamic Control Interface (LCD) - WPAD-12L

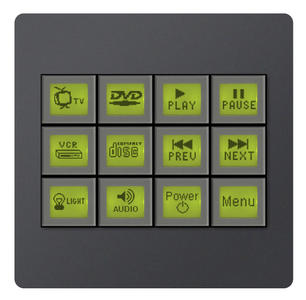

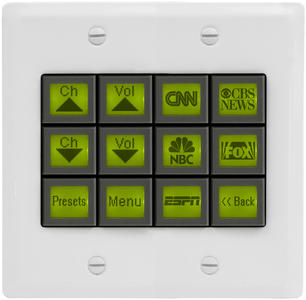

WACI-PAD is a very special and unique button panel. The WACI-PAD fits in a double gang electrical box and provides a comfortable, tactile and graphical user experience. The buttons use tiny display technology to provide multiple levels of interaction using accompanying software. Each button has the ability to morph into other buttons based on button presses or events taking place in the system. In addition, there is a built-in web server for remote IP control. With the built-in IR and Serial ports, the WACI PAD is the most innovative and functional control interface in the industry today.

Benefits:

• WACI PAD offers users the reassuring sensation of a tactile button press.


• Dynamic actions take place instantly as a button is pressed


• Almost all practical system designs can be accomodated by this innovative device.


• Overall, WACI PAD offers a superior user experience at a very affordable price.


• WACI-PAD is an interface and control system all in one!

General Specifications
Processor
250 MIPS processor

LCD
36x24 pixels per button

Memory
4MB Flash, 4MB RAM

Ports
Serial
(1) RS-232/422/485

IR
(1) IR/1-way RS-232

LAN
(1) 10/100 LAN Port with auto MDX(POE capable on port 1)

LCD Color
Green, Red, Orange

Software
Internal Web Server
Built-in diagnostics and setup
Internal bitmap setup

Physical
Power Supply
12V

Size
2-Gang

Weight
1lbs [454g]
