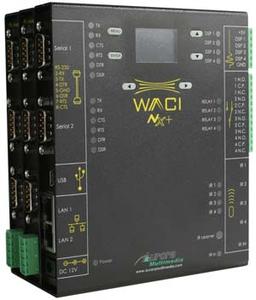

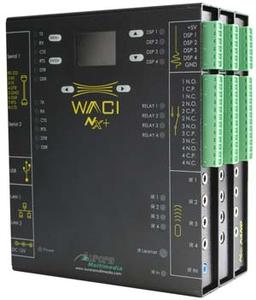

Aurora Event Controller Package - WACI-NX+E2

Aurora Event Controller Package - WACI-NX+E2 - The WACI NX+ E2 provides WACI NX Controller with 12 Serial Ports, 12 Relays, 12 IR/RS-232TX Ports, and 12 DSP I/O ports.

The specific control requirements of a system design determine the correct WACI NX configuration. Designers simply tally the control ports needed, then combinations of serial, relay, I/O and IR ports can be assembled to provide total control of all aspects of a centrally located system. Designers may contact Aurora for a system review and recommendations. Rapid field installation of expansion ports requires a technician to simply; check that the WACI Firmware version is up-to-date, plug in the module, and tighten 4 screws. All of the added ports become available immediately.

Benefits:

• Control up to 60 unique devices from this single unit. Flexible use of IR ports as 1-way RS-232 allows for the control of effective combinations of IR and RS-232 serial devices. WACI can support the simplicity of the most powerful universal IR remote in the world, or it can be the heart of a complex, networked, worldwide asset management and control system


• No other control system on the market offers this combination of features in a compact, cost effective package.


• Greater expandability offers more flexibility (including secure wireless connectivity)


• Each WACI unit contains its own resources preventing slow performance and bottlenecks caused by shared systems.


• Integrates with the entire WACI control system series (including the WACI NX expansion bus add-on packs and IPF network expansion modules)


• The WACI NX expansion bus allows hard disk storage, battery backup features, streaming audio/video, and additional ports


• True platform-independent operation and a wide range of OS compatibility (including with multiple OS simultaneous access across a common network)


• Programming is as easy as writing web pages with off-the-shelf content creation applications such as Macromedia Flash, HTML, DHTML, SOAP, XML, CGI, RPC, and Visual Basic


• Compatible with Microsoft Internet Explorer 5.0 or higher, Netscape Navigator, Mozilla Firefox, and Apple Safari web browsers


• Pre-configure and test equipment, control or monitor connectivity using the built-in diagnostics and advanced event manager before writing any code


• Server side operation means that no dedicated server is required and that no special applications need to be installed on your PC to access the WACI control system. Built-in network security features (including encryption and password protected multiple access levels with intelligent remote telnet capabilities)

General Specifications
Processor
900MIPS

Memory
64MB 500DDR

Flash memory
64MB

Maximum Flash
4GB

IR Learner
(1) IR Learner

Display
OLED 96x64 Pixels

Ports
LAN
(2) 10/100T LAN Ports with Auto MDX and Auto Polarity

Serial
(12) 2-way RS-232 ports

IR
(12) IR/serial/1-way RS-232 outputs
(1) IR input

DSP
(12) DSP ports: TTL In/Out and analog inputs and outputs -5V to + 5V

Relays
(12) isolated low-voltage relays C-Type 24VDC @1A

Expansion ports
(1) High-speed, 2.1Gb/s card slot
(1) USB On-the-Go Port
(1) compact flash Type II slot for memory

Physical
Power
12V 1.25A 5.5Watts

Size
5.8" x 4.9" x 2.5" [14.73 x 12.45 x 6.35 cm]

Weight
0.568lbs [258g]
