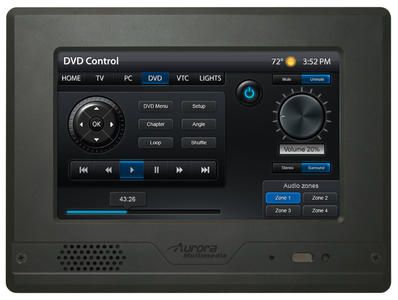

Aurora In-Wall Color Touch Panel Controller - NXT-700

Aurora In-Wall Color Touch Panel Controller - NXT-700

Aurora Multimedia introduces the new hybrid NXT-700 touch panel in-wall controller. The NXT-700 is a revolutionary development that integrates a control system processor with multiple ports into a Web-based touch screen controller. The extremely versatile hybrid combines a spectacular 7-inch widescreen touch panel display with a fully loaded 32-bit 900-MIPS WACI engine. As a registered Bluetooth adopter, Aurora has added a Bluetooth microphone option into the NXT-700 for voice-lift applications. The hybrid can utilize other common Bluetooth accessories, and includes an internal audio mixer to complete the solution.

General Specifications
Processor
900MIPS

Memory
256MB Flash, 128MB DDR2

Maximum Flash
16GB

IR Learner
(1) IR receiver window on front panel

Front Bezel
Aluminum

Display
Physical
7" LCD Panel

Resolution
800x480 (16:9 aspect ratio)

Touch Screen
4 wire resistive touch surface

Brightness
300 nits (cd/m2)

Viewing Angle
±70° horizontal, +70°/-60° vertical

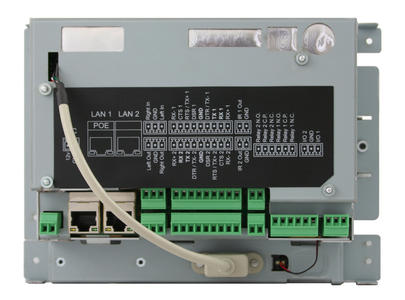

Ports
Serial
(2) RS-232/422/485

IR
(2) Outputs

Relays
(2) C-Type

I/O
(2) I/O's

LAN
(2) 10/100 LAN Auto MDX (Port 1 is POE capable)

Audio
(1) Stereo Line In
(1) Stereo Line Out
(1) Front panel speaker
(1) Front panel microphone

Expansion Ports
(1) USB 2.0 Host
(1) Micro SD

Physical
Power
12V DC 9Watts

Dimensions
8.51" x 6.67" x 1.8" [21.61 x 16.94 x 4.57 cm]
