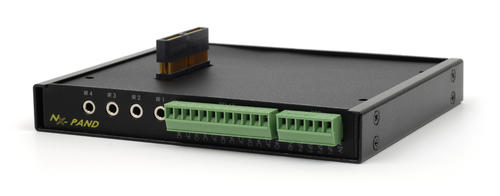

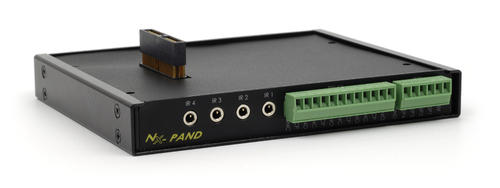

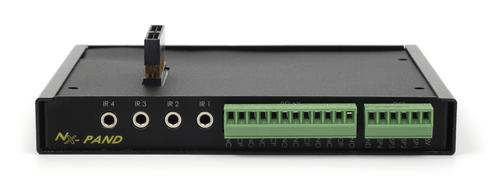

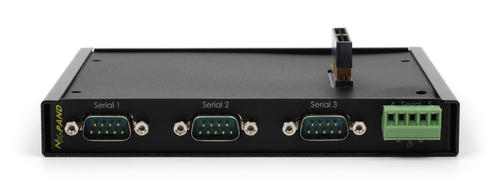

Aurora Port Expansion Model - for WACI NX+ and NX Jr - NX-PAND

Aurora Port Expansion Model - for WACI NX+ and NX Jr - NX-PAND - The NX-PAND allows the WACI NX+ or NX Jr. to control additional ports by simply connecting it to its "parent" WACI NX.

• Connects to the fast 32 bit wide WACI NX-PANSION bus
• Adds 5 Serial Ports
• Adds 4 IR/Serial (TX only) ports
• Adds 4 Relay Ports
• Adds 4 DSP Ports

Benefits:

• Expansion modules can be used with the WACI NX+ or WACI NX Jr. compact control systems


• Multiple WACI NX units can be used in a single system, each with a different WACI NX expansion module for the ultimate in control system flexibility


• NX-PAND, when connected with the WACI NX, allows large sized systems to be controlled using very little rack space.

Ports
Serial
(5) 2-way RS-232 ports (Port 2 capable of RS-422/485)

IR
(4) IR/serial/1-way RS-232 outputs

DSP
(4) DSP ports: TTL In/Out and analog inputs and outputs -5V to + 5V

Relays
(4) isolated low-voltage relays C-Type 24VDC @1A
