Soundcraft / Spirit GB2R-12.2 - 12-Channel Rack-Mountable Audio Mixer - RW5755SM

Part Number: RW5755SM
Our Price: $1,443.00
Availability: Usually ships in 2-3 business days
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

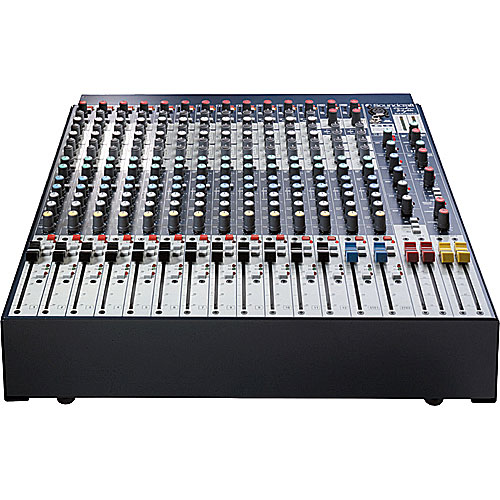

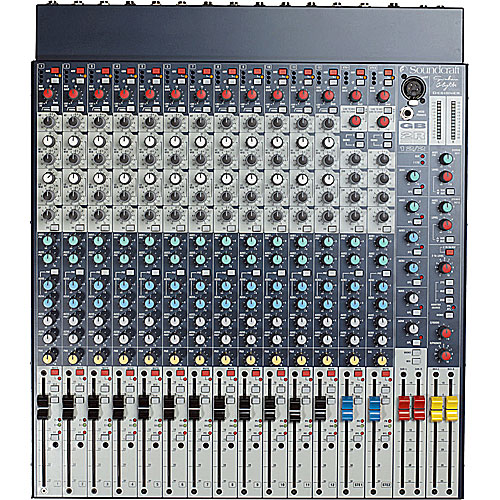

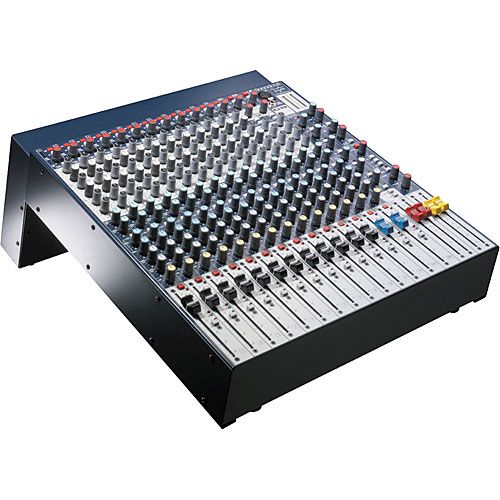

Soundcraft / Spirit GB2R-12.2 - 12-Channel Rack-Mountable Audio Mixer

The Soundcraft GB2R-12.2 12-Channel Console is a versatile audio mixer that draws on the technology based on their famous GB-series audio consoles. The GB2R-12.2 is equipped with the GB-30 microphone preamplifiers and precision EQ section on all mono channels. The mixer features 12 mono input channels, each with balanced 1/4" TRS phone and balanced XLR microphone inputs with individual switchable +48V phantom power.

All mono channels also include direct outputs for feeding signal to monitors, additional mixers and recording devices. Inserts are provided on all mono channels as well, and provide easy routing to external processors. Two dedicated stereo inputs are provided and feature stereo line and microphone inputs.

A total of 6 auxiliary sends feed external effects, monitors, etc. The GB2R-12.2 features durable construction and its rack-mountable chassis features a rotating connector pod for easy mounting and cable access. In all, the mixer is an ideal solution for project studio recording, sound reinforcement application, video production and many other professional audio mixing applications.

GB-Series Technology
The GB2R-12.2 draws on the technology based on Soundcraft's famous GB-series audio consoles. The GB2R-12.2 is equipped with the GB-30 microphone preamplifiers and precision EQ section on all mono channels.

12-Total Mono Channels
The mixer features 12 mono input channels, each with balanced 1/4" TRS phone and balanced XLR microphone inputs with individual switchable +48V phantom power.

Dedicated Stereo Channels
Two dedicated stereo inputs are provided and feature stereo line and microphone inputs.

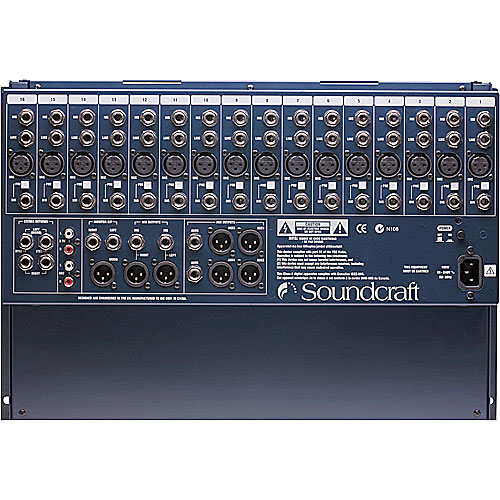

Rotating Connector Pod
The GB2R-12.2 features durable construction and its rack-mountable chassis features a rotating connector pod for easy mounting and cable access.

Specifications

Total # Of Inputs 12-Mono Channels
2-Dedicated Stereo

Mic/Line Inputs 12 Mono Balanced XLR Microphone
2 Stereo L/R Balanced XLR Microphone 12 Mono Balanced 1/4" TRS Phone Line
2 Stereo L/R Balanced 1/4" TRS Phone Line

Stereo Line Inputs 2 Stereo L/R Balanced XLR Microphone
2 Stereo L/R Balanced 1/4" TRS Phone Line

In-Line Inputs/Returns No

AUX Sends 6-Total
4 Balanced XLR 2 Balanced 1/4" TRS Phone

AUX Returns 2 Stereo L/R 1/4" TRS Phone

Inserts 1/4" TRS Phone
All Mono Inputs, Mix Output and Subgroup Outputs

BUS (Group) Outputs 2 Balanced XLR

2 Trk Master I/O Mix Output - 2 Balanced XLR Mono Output - 1 Balanced XLR

ALT I/O Direct Outputs (All Mono Channels) - 1/4" TRS Phone

Monitor Outputs Stereo L/R 1/4" TRS Phone

EQ Section Mono Input Channels:
High pass Filter - 100Hz, 18dB/Octave HF - 13kHz, +/-15dB, 2nd order shelving
Hi-Mid - 550Hz-13kHz, +/- 15dB, Q=1.5 Lo-Mid - 80Hz-1.9kHz, +/- 15dB, Q=1.5
LF - 80Hz, +/- 15dB, 2nd order shelving

Solo/Mute Mute, Mix, Subgroup and PFL on all channels

Channel Level Control 100mm Fader

Trim/Gain Control Rotary Controls

Phantom Power +48V

Metering Input Channels: Single LEDs, Signal Present & Peak
Outputs: 2 tri-color, 12-segment LEDs

Frequency Response 20Hz to 20kHz < 1dB

Dynamic Range Not Specified By Manufacturer

Signal-to-Noise Ratio -128dBu, Measured RMS, 22Hz to 22kHz Bandwidth

Total Harmonic Distortion (THD) <0.006%

Hard Disk Space Internal PSU: 90V-240V AC, 50/60Hz Universal Input
Power Consumption: Less than 100W

Dimensions (WxHxD) 17.36 x 8.20 x 21.05" (441 x 208.42 x 534.79mm)

Weight Not Specified By Manufacturer
