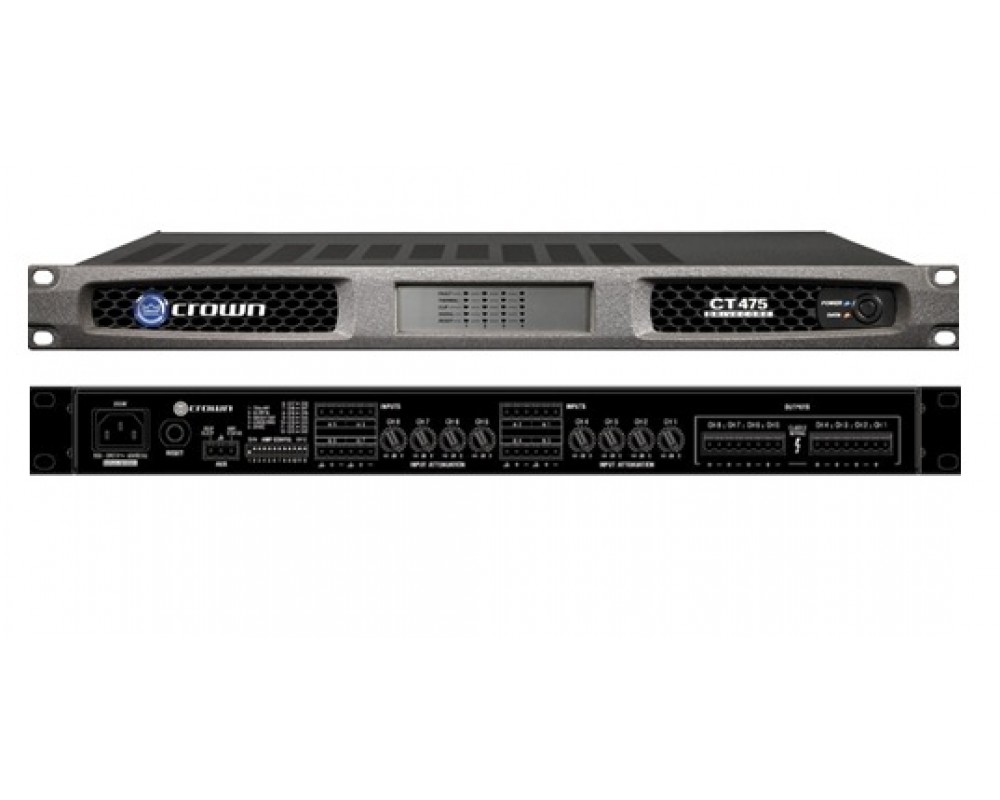

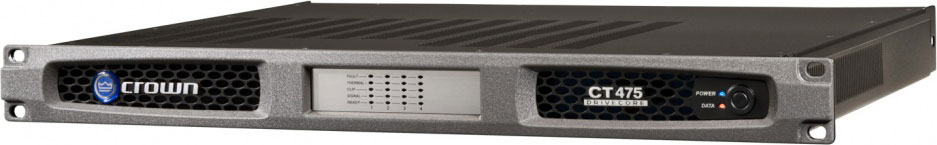

Crown CT475 ComTech DriveCore 4-Channel Power Amp, 75W per Channel @ 8 Ohms
Crown CT475 ComTech DriveCore 4-Channel Power Amp, 75W per Channel @ 8 Ohms

Crown CT475 ComTech DriveCore 4-Channel Power Amp, 75W per Channel @ 8 Ohms

Part Number: CT475
Our Price: $1,339.89
Availability: Usually ships the same business day
-
+
Free Shipping
This item qualifies for FREE GROUND SHIPPING! Contiguous U.S. only.

Description

DriveCore Technology

Powering this remarkable amplifier is the pioneering technology of DriveCore™, which seamlessly integrates the amplifier drive stage into the power output stage fusing everything into a chip the size of a dime. The foundational DriveCore™ circuitry is based on breakthroughs by Crown's own Gerald Stanley with five patents applying to the advanced feedback, modulation and output stage technologies. DriveCore's front-end drive circuits leverage the inherent efficiency of Class D output stages while also maintaining superb sonic characteristics. The end result is an ultra-efficient one-piece audio amplifier circuit that exhibits the exemplary audio quality of a highly evolved Class AB design. More information about DriveCore™.

Energy Efficiency

Energy efficiency is an integral part of ComTech DriveCore™. This series debuts a new four-stage universal power supply that adapts to operating demands to assure peak efficiency. Normal, Green, Sleep, and Deep Sleep modes combine to provide everything from full voltage to the supply rails for instant response to limiting power consumption, to less than 1W when not in use. And, because it's over 90% efficient in the DriveCore™ stage, no fan is required, allowing for ultra-quiet operation.

It's Time to Go Small

An ideal complement for the intimate spaces within a larger project, such as the high-end suites in a stadium, the ComTech DriveCore™ is a technological marvel. Small in size, big in performance, and competitively priced, it effortlessly demonstrates Crown's unmistakable command of installed sound applications.

Specifications

Specifications



Specifications CT 475 CT 4150 CT 875 CT 8150
Channels 4 4 8 8
Sensitivity 1.4V 1.4V 1.4V 1.4V
Rated Power Output 75W per Ch @ 8 ohms
75W per Ch @ 4 ohms
125W per Ch @ 8 ohms
125W per Ch @ 4 ohms
75W per Ch @ 8 ohms
75W per Ch @ 4 ohms
125W per Ch @ 8 ohms
125W per Ch @ 4 ohms
Signal to Noise Ratio
(below rated power 20Hz to
20kHz, A-Weighted)
110dB 110dB 110dB 110dB
Total Harmonic Distortion (THD)
(full rated power, 20Hz - 20kHz)
< 0.5% < 0.5% < 0.5% < 0.5%
Intermodular Distortion
(from 0dB down to -40dB)
< 0.5% < 0.5% < 0.5% < 0.5%
Frequency Response
(at 1W into 4/8 ohms)
± 0.5dB ± 0.5dB ± 0.5dB ± 0.5dB
Crosstalk
(below rated power 20Hz to 1kHz)
> 70dB > 70dB > 70dB > 70dB
Common Mode Rejection
(20Hz to 1kHz)
> 55dB, typically . 70dB > 55dB, typically . 70dB > 55dB, typically . 70dB > 55dB, typically . 70dB



General CT 475 CT 4150 CT 875 CT 8150
Dimension (H x W x D) 1.75" x 19" x 14.25" 1.75" x 19" x 14.25" 1.75" x 19" x 14.25" 1.75" x 19" x 14.25"
Net Weight 10 lbs 10 lbs 10 lbs 10 lbs
Net Shipping Weight 15 lbs 15 lbs 15 lbs 15 lbs

*Specifications are preliminary and subject to change
